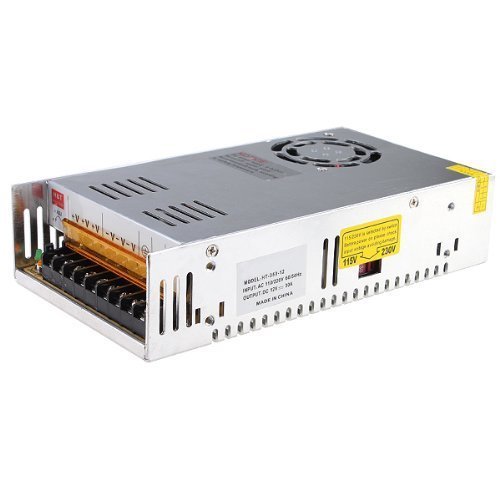

eTopxizu 12v 30a Dc Universal Regulated Switching Power Supply 360w for CCTV, Radio, Computer Project /

Product Features:

Auto on/off cooling fan

High efficiency

Low temperature

LED indicator for power on

Over Load and Short Circuit Protection

Over Voltage Protection

Output:

DC Voltage: 12V

Rated Current: 30A

Current Range: 0-30A

Rated Power: 360W

Ripple & Noise (maximun): 150mV

Voltage Adjustable Range: 10-13.2V

Voltage Tolerance: +/- 2.0%

Line Regulation: +/- 0.5%

Load Regulation: +/- 0.5%

Setup, Rise, Hold Up Time: 200ms, 50ms, 20ms at full load

Input:

Voltage Range: 90-132V AC / 180-264V AC by Switch 248-370V DC

Frequency Range: 47-63Hz

Efficiency: 74%

AC Current: 6.5A/115V 4A/230V

Inrush Current: 25A/115V 50A/230V

Leakage Current: <3.5mA/240VAC

Note

This product is suitable for indoor use, non-detachable power shell.

External power supply round hole mesh heat vents, in the range of 50cm within the outlet Do not place other flammable items.

5 cm in the product range not place other items, to ensure that the powersupply has good thermal environment, to ensure safety.

Please accurately calculate the load power, do not overload. When thepower is working, do not touch the case.

Do not short-circuit output if no output, please use off one minute re-energized.

Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.

Professional installation of qualified electrician is highly recommended.
