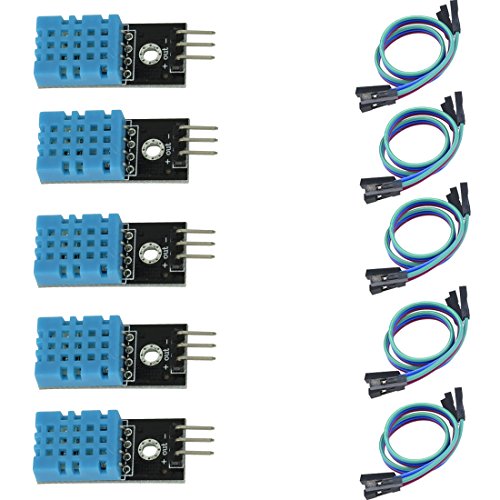

| HiLetgo 5pcs DHT11 Temperature and Humidity Sensor Module for Arduino Raspberry Pi 2 3 / | |
| Publisher: HiLetgo | |
| Availability:Usually ships in 24 hours | |
| Sales Rank: 53504 | |
|
Similar Books
Instruction:
This sensor module utilizes DHT11 as the sensitive component and has a bypass capacitor and a pull-up resistor on-board. The DHT11 is a pre-calibrated digital output temperature and humidity sensor. The single-wire wiring scheme makes it easy to be integrated to other applications. The simple communication protocol greatly reduces the programming effort required.
Specification:
Power supply voltage: 3.3~5.5V DC
Output: the single bus digital signal
Measuring range: 20-90%RH humidity, temperature 0~50°
The measurement accuracy of +-5%RH: humidity, temperature +-2 °
Resolution: 1%RH humidity, temperature 1 °
Exchangeability: fully interchangeable
Long term stability: <± 1%RH
Size: 28 * 12 * 7.2mm
Interface Description:
1.VCC:External 3.3 V-5 V
2.GND:External GND
3.DO:Small board switch digital output interface, connect the microcontroller IO port
Package Included:
5* DHT11 Module
5* Dupont Cable
