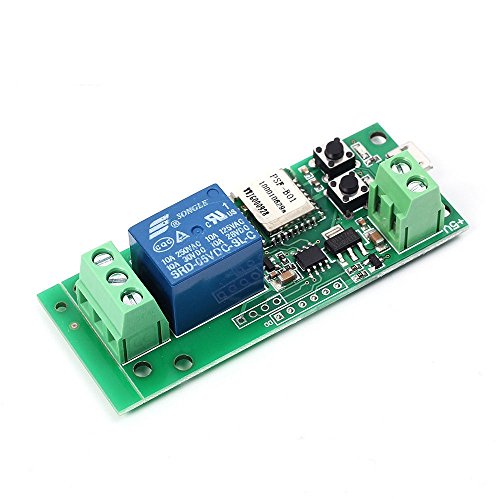

MHCOZY WiFi Wireless Smart Switch Relay Module for Smart Home 5V 5V/12V，Ba applied to access control, turn on PC, garage door (5v) /

The wireless switch supports inching and self-locking mode.Users can add the device to the APP eWeLink to remote control connected home appliances or devices.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS.
Supported functions:

Remote turn on/off
Timing Schedules
Device Sharing
Group Management
Specification:

Dimensions:70.5mm*31mm*17mm
Operating current: 5V DC only(please don't power it with 12V or above power source, phone charger can be used,not included)
LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max switching voltage: <250V
Relay lifespan: more than one million times
Electrical insulation resistance 100M
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
.Rated switching voltage: <250V

KINDLY TIPS

1.The WIFI Relay support 2.4G WIFI only,doesn't support Mesh wifi system and 5G WiFi network.When pairing,make sure to put it close to your router.please use a wifi extender if wifi signal is weak.
2.Working power is DC 5V only,if you need 12V 24V 32V power source,please select our 12V item.
3.The relays are switches without output.Please refere to trouble shootings in ewelink app,there are detail problems solution,and you can open a case in ewelink app or email us if any questions

Package included: 1 x Jog Inching Self-locking WiFi Wireless Smart Home Switch
