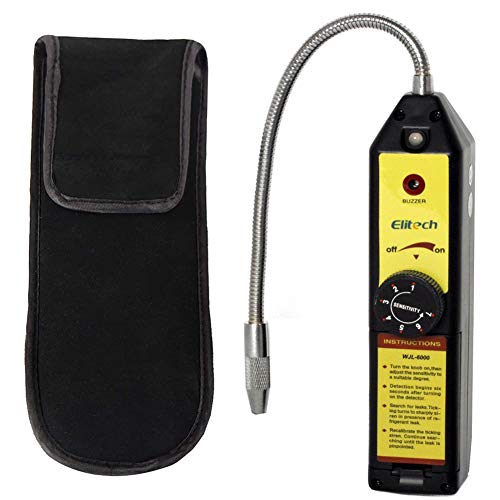

WJL-6000 Portable CFCs HCFCs HFCs Refrigerant Halogen Leak Detector Tester Air Conditioner Inspection Tool HVAC /

Q2: How long is the detect distance?
A: This detector is designed with corona sensor so the probe should be very close to the gas leak area.

Q3: Usage scenario?
A: Pipe leakage, automobile air conditioner, cold storage, refrigerator repair and so on.

Q4: What's the meaning of "maximum sensitivity: 6g/yr"?
A: It means this detector can detect objects which leak 6g gas or more per year.

Q5: What's the length of probe?
A: About 8 inches.

Q6: How many batteries does it need?
A: This device needs 4 x AAA batteries. The battery box can be taken out and you will see another 2 at the back of it.

Q7: Why does the detector beep immediately when I turn it on?
A: When turn on the detector it will beep regularly at a slow frequency. If leak detected, it will beep in a higher frequency.

Technical parameters
Operating temperature: 0℃-52℃ (30℉ to 125℉);
Maximum sensitivity: 6g/yr,for all halogenated refrigerants;
Battery life:approximately 50 hours normal use;
Response time:Instantaneous;
operating mode: continuous,no limitation;
Fixed probe length:20cm;
Dimensions:22.9x6.5x6.5cm;
Warm-up time: approximately 6 seconds;
Reset time: two to ten seconds;
Power supply 6V DC, four AAA alkaline batteries.

The battery voltage indicator:
The light on the front panel is used for leakage warning instructions and battery voltage.
Green-the battery voltage is normal, suitable for the job.
Orange-the battery voltage is close to the limit work, need to be replaced as soon as possible.

Package included:
1 x Detector, 1 x Carry case, 1 x Instruction
